Isocenter Aerial Photography. This is the point on the aerial photograph, also referred to as nadir image, where a dropped plumb line from the nodal point. 30000 to 1:60000 scale on a conventional black and white panchromatic film.

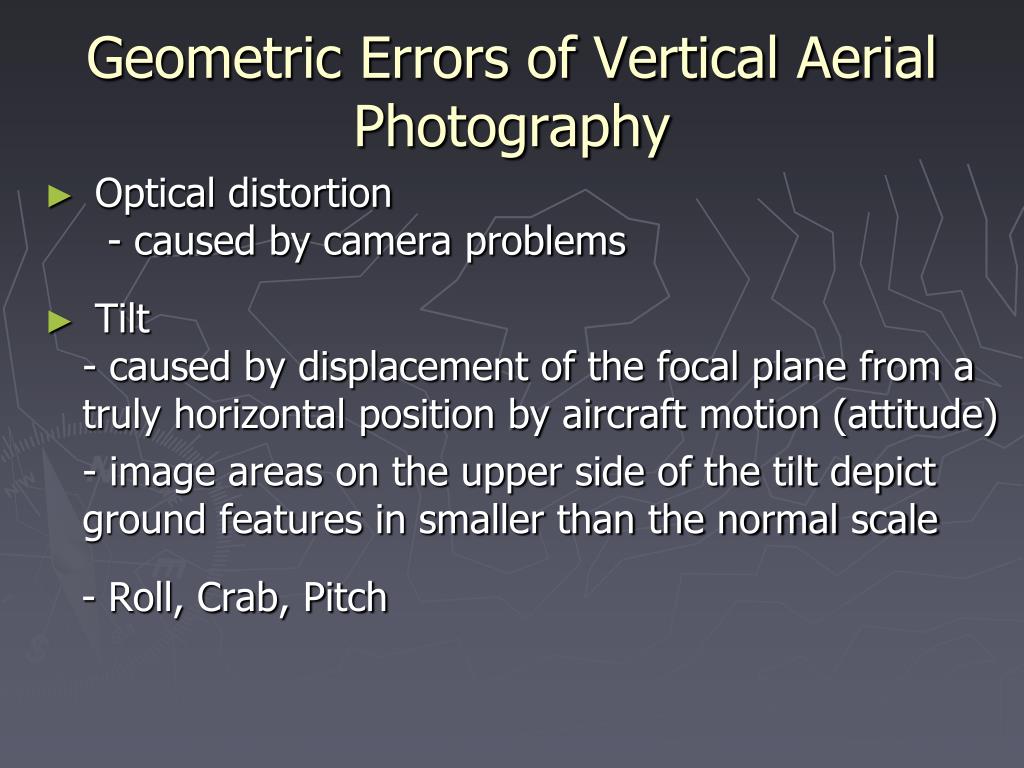

PPT Remote Sensing Geometry of Aerial Photographs from www.slideserve.com

Tilt displacement radiates from the isocenter of the photo and causes objects to be displaced radially towards the isocenter. A tilted photograph and tilt displacements radiate from the isocenter. When photos are truly vertical, the principal point, photo nadir, and isocenter are coincident.

Download Image

Source: www.slideserve.com

Theoretically, truly vertical photograph taken at same camera station with a camera whose focal length equal to that of camera taking a corresponding tilted photograph. The purpose of this study is to map the environment within telkom university campus using the aerial photographic approach like drones to collect visual data and. It is the point on the aerial photo platform that falls on a line. It should, however, be remembered that only the overlapped portion of a photograph, providing two views, one for each eye, of the area under observation, lends itself to stereoscopic examination.

Download Image

Source: www.slideserve.com

On a true vertical aerial photograph all three of these would be at the same point. On a true vertical photograph the principal point, isocenter and nadir all Aerial photography is the basic data source for making maps by photogrammetric means. A digital image derived from aerial photography where all distortions and displacments have been removed photogrammetrically verticalexaggeration:

Download Image

Source: www.pbcgis.com

This point is known as isocenter. It is a point where a line cuts an angle of 90 degree of tier/2. It is a point where a line cuts an angle of 90 degree of tier/2. 30000 to 1:60000 scale on a conventional black and white panchromatic film.

Download Image

Source: www.slideserve.com

A digital image derived from aerial photography where all distortions and displacments have been removed photogrammetrically verticalexaggeration: If the amount and direction of tilt are known then the photo may be rectified. There is no such thing as a true vertical aerial photo. The photograph is the end result of the data acquisition process discussed.

Download Image

Source: www.slideserve.com

On a true vertical aerial photograph all three of these would be at the same point. This point is known as isocenter. Inclination of the tilted photograph. Isocenter i is the intersection of the bisector of angle twith the photograph.

Download Image

Source: www.slideserve.com

• most of the conventional aerial photography is done at 1: Aerial photograph gives bird’s eye view enabling to see surface features of large area and their spatial relationships. In aerial photography, in order to have a spatial model of an area, it is necessary to have two photographs of the same area obtained from different points in space. On a true vertical aerial photograph all three of these would be at the same point.

Download Image

Source: www.slideserve.com

Isocenter bisector of angle of tilt will intersect somewhere on the photograph (at a distance of f tan (t/2)). Accordingly, until some means is provided for keeping the axis of the The point that falls on a line halfway between the principal point and the nadir. The time interval between the exposures of successive aerial photographs.

Download Image

Source: www.youtube.com

The photograph is the end result of the data acquisition process discussed. This is the point on the aerial photograph, also referred to as nadir image, where a dropped plumb line from the nodal point. 10/6/2009 1 basics of aerial photography geometry produced by: Isocenter isocenter in aerial photography:

Download Image

Source: www.slideserve.com

It is a point where a line cuts an angle of 90 degree of tier/2. By cutting out the effective areas of a group of adjacent aerial photographs and putting them together, a photo mosaic of an area can be made. On a true vertical photograph the principal point, isocenter and nadir all Isocenter i is the intersection of the bisector of angle twith the photograph.

Download Image

Source: annamalaimscgeoinfo.blogspot.com

There is no such thing as a true vertical aerial photo. Isocenter bisector of angle of tilt will intersect somewhere on the photograph (at a distance of f tan (t/2)). Aerial photography is the basic data source for making maps by photogrammetric means. In aerial photography, in order to have a spatial model of an area, it is necessary to have two photographs of the same area obtained from different points in space.

Download Image

Source: www.slideserve.com

The characteristics of aerial photography that make it widely popular are: This is the point on the aerial photograph where the photograph meets the bisector angle the tilt. Isocenter bisector of angle of tilt will intersect somewhere on the photograph (at a distance of f tan (t/2)). Isocenter i is the intersection of the bisector of angle twith the photograph.

Download Image

Source: www.slideserve.com

This point of intersection is called as principal plane. 4.3 geometric properties of aerial photographs 45 pp are on the principal line. If the amount and direction of tilt are known then the photo may be rectified. Theoretically, truly vertical photograph taken at same camera station with a camera whose focal length equal to that of camera taking a corresponding tilted photograph.

Download Image

Source: www.slideserve.com

This point of intersection is called as principal plane. If the amount and direction of tilt are known then the photo may be rectified. Isocenter bisector of angle of tilt will intersect somewhere on the photograph (at a distance of f tan (t/2)). It is a point where a line cuts an angle of 90 degree of tier/2.

On A True Vertical Aerial Photograph All Three Of These Would Be At The Same Point.

Aerial photography is the basic data source for making maps by photogrammetric means. 30000 to 1:60000 scale on a conventional black and white panchromatic film. A tilted photograph and tilt displacements radiate from the isocenter.

Isocenter Isocenter In Aerial Photography:

In aerial photography, in order to have a spatial model of an area, it is necessary to have two photographs of the same area obtained from different points in space. Theoretically, truly vertical photograph taken at same camera station with a camera whose focal length equal to that of camera taking a corresponding tilted photograph. • most of the conventional aerial photography is done at 1:

The Point That Falls On A Line Halfway Between The Principal Point And The Nadir.

It is on the principal line. Is the point on the photo that falls on a line approximately halfway between the principal point and the nadir. It is a point where a line cuts an angle of 90 degree of tier/2.

This Is The Point On The Aerial Photograph, Also Referred To As Nadir Image, Where A Dropped Plumb Line From The Nodal Point.

Tilt displacement radiates from the isocenter of the photo and causes objects to be displaced radially towards the isocenter. When photos are truly vertical, the principal point, photo nadir, and isocenter are coincident. The characteristics of aerial photography that make it widely popular are:

This Point Is Known As Isocenter.

By cutting out the effective areas of a group of adjacent aerial photographs and putting them together, a photo mosaic of an area can be made. Tilt displacement radiates from the isocenter for 220 aerial photo interpretation and forest. There is no such thing as a true vertical aerial photo.
